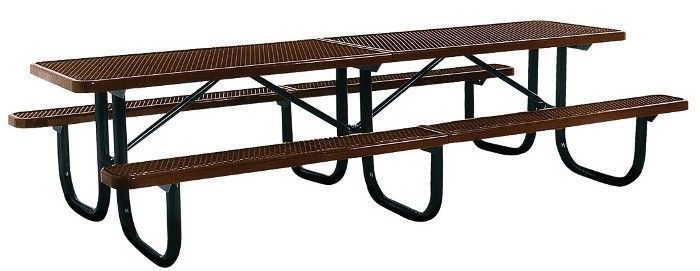

12' Thermoplastic Coated Picnic Table with Walk Through Design and Diamond Pattern Top and Seats


Heavy duty steel 12' picnic table with walk through design.

Read Full Description & Specs

List Price $2,417.00 You Save: $604.00 (25% Off MSRP) $1,813.00
  • Buy 5 for $1,722.35 each and save 5%
  • Buy 10 for $1,631.70 each and save 10%
  • Buy 25 for $1,541.05 each and save 15%
To get the best shipping quote, select options above and the quantity below, then click "Request A Quote".
Price: $1,813.00
View Quantity Discounts
  • Buy 5 for $1,722.35 each and save 5.00%
  • Buy 10 for $1,631.70 each and save 10.00%
  • Buy 25 for $1,541.05 each and save 15.00%
Add to Wish List Add to Compare

Bulk Shipping Inquiries

If you're buying in bulk or need a shipping quote for your business, submit for a quote instead:


OCC Outdoors Extra Heavy Duty 12' Shelter/Picnic Table with 3 Legs and Thermoplastic coated top and seats. The Oven-Fused polyethylene copolymer based fluidized thermoplastic coating has superior mechanical performance, impact resistance and UV-stability. The frame is electrostatically powder coated and oven cured.

The top and seats are 11 gauge die formed angle frame 1”x1-7/8” with 3” radius corners. Seat and tops are fabricated from 3/4" #9 expanded sheet metal.  7 gauge x 1-1/2” die stamped steel flat bar flat bar center support and mounting bracket understructure all electrically MIG welded.

The frame is 2-3/8” O.D. x 12 gauge pre-galvanized structural steel tubing. Cross braces 1" O.D. x 16 gauge pre-galvanized structural steel tubing. The brace attachment points are 1-1/2” x 1-1/2” x 3/16” steel angle and the seat and top mounting points are 7 gauge x 1-1/2” die stamped steel flat bar. The legs are bent over a mandrel through the bend radius producing a wrinkle free bend. Holes are predrilled in legs for optional
surface mounting. The entire frame is electrically MIG welded.


  • Thermoplastic finish top and seats have:

a. Superior Adhesion
b. Resistance to Cutting & Vandalism
c. No Drips or Runs
d. Smooth Finish Prevents Mold
e. UV Protection
f.  Environmentally Friendly
g. Available in 8 Colors

  • Powder Coated Frame:

a. One of the Industry’s most Durable Protective Coatings
b. Five Layers of Protection from harmful environmental elements      with very little maintenance.
c. Available in 13 Colors

  •  2-3/8" O.D. frame with 1" O.D. brace
  • All MIG welded frame with walk-through designs
  • All stainless steel hardware
  • Portable and/or surface mount
  • Includes 2 sections and 3 legs for added support
  • Dimensions:

    Top: 30” wide x 144” long x 30-1/4” high.
    Seats:  12” wide x 144” long x 18-1/2” hhigh
    Outside Dimension: 69” x 144”

  • Weight: 347 lbs.
  • Some Assembly Required
  • Made in the USA!!

Info & Guides

Specifications/Assembly Instructions ( OCC-238-3-V12_-_12_Heavy_Duty_Table_with_3_legs_Specifications.pdf,1.68 MB) [Download]

Instructions / Assembly

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.


More Information
Material Steel
