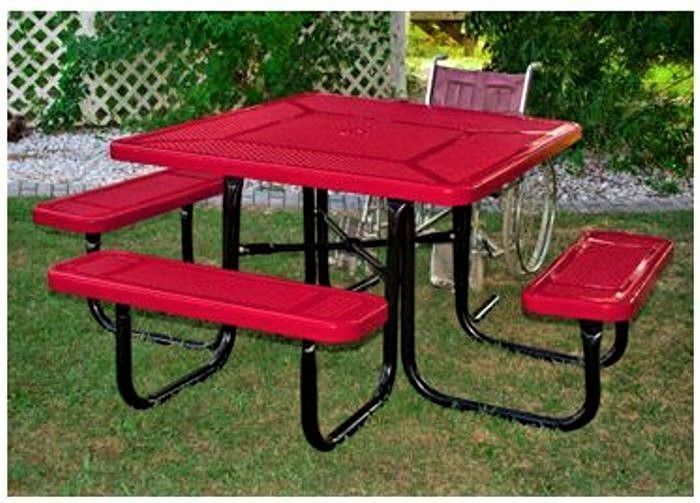

OCC-358H-V 46" ADA Accessible Table with Diamond Pattern Top and Seats.

This OCC Outdoors ADA Accessible top and seats have a 11 gauge die formed angle frame 1" x 1-7/8" with 3” radius corners. The OCC-358H-P table top and seats are precision punched 12 gauge sheet steel with a 5/8" holes to create the perforated patern and the OCC-358H-V table top and seats are 3/4" #9 diamond pattern expanded steel.

Top and seats are coated with oven fused functionalized polyethylene copolymer-based thermoplastic fluidized bed coating with superior mechanical performance, impact resistance and UV-Stability. The frame is 1-5/8" OD x 14 gauge pre-galvanized structural steel tubing and the cross braces are 1.029 O.D. x 15 gauge pre-galvanized structural steel tubing. The brace attachment points are 1-1/2” x 2” x 3/16” steel flst bar and the sear mounting points are 7 gauge x 1-1/2"die stamped steel flat bar. The legs are bent over a mandrel producing a wrinkle free bend. Holes are predrilled in the legs for optional surface mounting. The frame assembly is MIG welded and the frame coating is Electrostatic powder coated, oven cured. All of the hardware fasteners are stainless steel.

 46" ADA Accessible table with umbrella hole standard

  • Thermoplastic coated Top & Seats
  •     Superior Adhesion
  •     Resistance to Cutting and Vandalism
  •     No Runs or Drips
  •     Smooth Finish Prevents Mold and Mildew
  •     Easily Repaired
  •     UV Protection
  •     Environmentally Friendly
  •     All MIG welded frame with walk through design
  •     Umbrella hole diameter 1-5/8" I.D.
  •     All stainless steel hardware
  •     Made in the USA

Dimensions and weight:

OCC-358-HV ADA Accessible 3-Seat Diamond Pattern Table

  • Outside to Outside Dimensions: 77-3/4" x 71"
  • Top is 46" x 55" and is 30” high
  • Seats: 12" Wide x 36" Long and 18-1/4" High.
  • Weight: 172#

OCC-358H-P ADA Accessible Perforated Pattern Table

  • Outside to Outside Dimensions: 77-3/4" X 71"
  • Top is 46" x 55" and is 30” high
  • Seats: 12" Wide x 36" Long and 18-1/4" High.
  • Weight: 224#
  • Some Assembly Required

Made in the USA!!

Need a quick shipping quote or have other questions?

Please provide as much information as you can and we'll typically reply within minutes!

Specifications and Installation Instructions (OCC-358H-V_Specifications_Installation_Instructions.pdf, 1,158 Kb) [Download]

Specifications and Installation Instructions (OCCOutdoors_358H-P_Specifications_Installation_Instructions.pdf, 1,189 Kb) [Download]

46" x 55" ADA Accessible Picnic Table with Thermoplastic Coated Steel Top and Seats

OCC-358H-V
List price: $1,164.00   You save: $291.00 (25% Off MSRP)
$873.00
Green Ultra Blue Red Yellow Blue Beige Black Dark Grey Burgandy White Purple Brown Matte Black
Diamond Pattern Perforated Pattern
+
Quantity Discounts:
Quantity 5+ 10+ 25+
Price $829.35 $785.70 $742.05
* Due to the size of this item, a custom shipping quote is required. For a quote on just this item, click the following button. For an order with multiple items, Add To Cart and follow through checkout without payment information. We will typically contact you within 1-2 hours with a shipping quote.
Request a Quick Shipping Quote
