Description

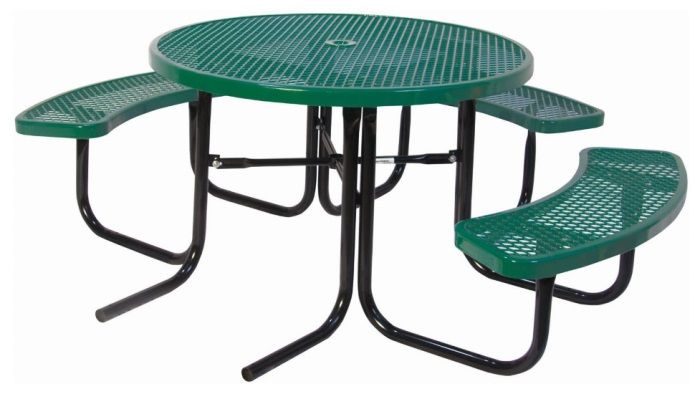

This OCC Outdoors 46" ADA Accessible round table has 3 seats allowing the 4th space to accommodate wheelchair seating. The top & seats are 11 gauge die-formed angle 1” x 1-7/8” frame with 3” radius corners on the seats and the top has a 1-15/8” umbrella pole opening.

The OCC-358-RDV tables have a 3/4” #9 diamond expanded metal pattern top and seats and the OCC-358H-RDP top is 12 gauge steel precision punched with a 5/8" to create the perforated pattern. The top and seats are coated with oven fused functionalized polyethylene copolymer-based thermoplastic fluidized bed coating with superior mechanical performance, impact resistance and UV-Stability.

The frame is 1-5/8" OD x 14 gauge pre-galvanized structural steel tubing and the cross braces are 1.029 O.D. x 15 gauge pre-galvanized structural steel tubing. The brace attachment points are 1-1/2” x 2” x 3/16” steel flat bar and the seat mounting points are 7 gauge x 1-1/2"die stamped steel flat bar. The legs are bent over a mandrel producing a wrinkle free bend. Holes are predrilled in the legs for optional surface mounting. The frame assembly is MIG welded and the frame coating is Electrostatic powder coated, oven cured

46" round table with umbrella hole standard
Thermoplastic coated Top & Seats
Superior Adhesion
• Resistance to Cutting and Vandalism
• No Runs or Drips
• Smooth Finish Prevents Mold
and Mildew
• Easily Repaired
• UV Protection
• Environmentally Friendly
3-Seat Single-sided ADA accessible
1-5/8" O.D. frame with 1-1/16" O.D. brace
All MIG welded frame with walk through design
Umbrella hole diameter 1-5/8" I.D.
All stainless steel hardware
Made in the USA
Dimensions and weight:

OCC-358H-RDV Diamond Pattern Table

Outside to Outside Dimensions: 82-1/4" x 70-3/4"
Top is 46" sdiameter and is 30” high
Seats: 12" Wide x 41" Long and 18-1/4" High.
Weight: 168#

OCC-358H-RDP Perforated Pattern 3 Seat Table

Outside to Outside Dimensions: 82-1/4" x 70-3/4"
Top is 46" diameter and is 30-1/4" high
Seats: 12" Wide x 40Long and 18-1/4" High.
Weight: 185#

Some Assembly Required

Made in the USA!!

Add an umbrella at: www.occoutdoors.com/umbrella/

Info & Guides

Specifications and Installation Instructions ( OCC-358H-RDV_Specifications_Installation_Instructions.pdf,1.1 MB) [Download]

Specifications and Installation Instructions ( OCCOutdoors_358H-RDP_Specifications_Installation_Instructions.pdf,1.09 MB) [Download]

Instructions / Assembly

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

More Information
Shipping Weight (pounds)	208
Shipping Width (inches)	48
Shipping Height (inches)	36
Shipping Length (inches)	48
Material	Steel
Finish	Thermoplastic Coated
