Description

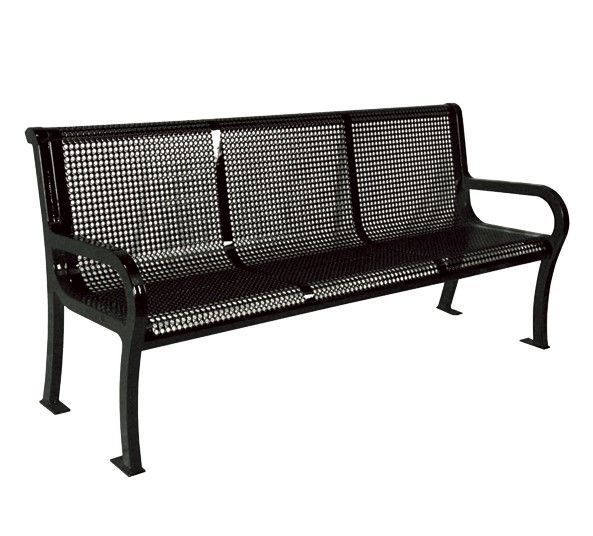

The OCC Outdoors Lexington 8' Thermoplastic UltraCoat Finish Bench can be portable or surface mounted (mounting hardware not included). The seats are 12 gauge die formed flat steel with Diamond, Perforated, Fiesta or Slat styling seats and are reinforced with 3/16 x 1 ½ “ slat strip. The end plates are 10 gauge flat steel plate and the seat assembly is electrically MIG welded. The bench Frame and legs are 1-1/2” cast aluminum with stainless steel hardware fasteners. The Thermoplastic coating is a coating process that melts to form a fusion bonded coating and then cools to produce superior physical properties that resists UV rays and damage from vandalism.

Cast Aluminum frame with Thermoplastic finish
Contoured seat for comfort
Overall Dimensions: 99” x 26-7/8 x 35-1/2
Seat Dimensions: 18” Wide x 96” Long
Seat Height: 18” from the ground to the top of the seat
Product Weight: Shipping Weight:

Diamond Pattern Bench: 234 Lbs. 314 Lbs.

Fiesta Pattern Bench: 210 Lbs. 290 Lbs.

Perforated Pattern Bench: 190Lbs. 270 Lbs.

Slat Pattern Bench: 210 Lbs. 290 Lbs.

Wave Pattern Bench: 227 lbs. 307 Lbs.

Shipping Dimensions: 98" L x 48" W x30" H
UltraCoat Thermoplastic Finish gives you:

Impact Resistance

Strong Adhesion

UV Protection

No Runs or Drips

Smooth Finish Prevents Mold & Mildew

Environmentally Friendly

Bench can be Portable or surface mounted
Assembly required.
4 Foot bench available @: http://www.occoutdoors.com/4-park-bench-lexington-thermoplastic-park-bench-with-arm-rest.html

6/ Bench available @: http://www.occoutdoors.com/6-fott-lexington-park-bench-thermoplastic-ultracoat-finish.html

Info & Guides

OCC Outdoors OCC-954-V8 8' Lexington Thermoplastic Bench w/Diamond Pattern Seat ( OCC-954-V8___8__Lenington_Diamond_Bench_Specifications.pdf,1.93 MB) [Download]

OCC Outdoors OCC-954-S8 8'Lexington Thermoplastic Bench w/Slat Pattern Seat ( OCC-954-S8___8__Lenington_Slat_Pattern_Bench_Specifications.pdf,2.75 MB) [Download]

OCC Outdoors OCC-954-FB8' 8' Lexington Thermoplastic Bench w/Fiesta Pattern Seat ( OCC-954-FB8___8__Lenington_Fiesta_Pattern_Bench_Specifications.pdf,3.68 MB) [Download]

OCC Outdoors OCC-954-W8 8' Lexington Thermoplastic Bench w/Wave Pattern Seat ( OCC-954-V8___8__Lenington_Diamond_Bench_Specifications_bddj-m0.pdf,2.43 MB) [Download]

OCC Outdoors OCC-954-P8 8' Lexington Thermoplastic Bench w/Perforated Pattern Seat ( OCC-954-P8___8__Lenington_Perforated_Pattern_Bench_Specifications.pdf,3.21 MB) [Download]

Instructions / Assembly

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

More Information
Shipping Weight (pounds)	314
Shipping Width (inches)	48
Shipping Height (inches)	30
Shipping Length (inches)	102
Material	Steel
Finish	Thermoplastic Coated
